Understanding the differences between a blind flange and a backing flange becomes indispensable in piping systems, construction, or engineering works. While the joining and sealing operations of pipelines are respectively involved by both these types of flanges, their differing objectives and applications set them apart. This article goes into the major differences that separate the two types and highlights some character aspects, instances of application, and practical benefits. This article intends to provide information to any knowledgeable professional or trainee in making an informed choice with regard to the best type of flange for a particular project. Stay tuned as we discuss these very important tools and how they affect the efficiency and reliability of the system.
Understanding Flanges
Flanges serve as critical components that connect pipes, valves, pumps, and other equipment within a given piping system. The interacting surfaces of a flange can be perfectly sealed to forbid any leakage; assembly or disassembly of the system becomes, in turn, a very simple task to carry out. Commonly, the flanges are used with gaskets and bolts to ensure a tight seal and satisfactory performance. The basic materials used for flanges include stainless steel, carbon steel, and alloy steel; the choice hardly depends on the price but more on the nature of the application, like pressure, temperature, and kind of fluid. That versatility and durability, non-compromising, are the key aspects that make flanges so important in oil and gas, water treatment, and manufacturing industries.
Definition of Flanges
The cheesy engineering, so to say, to attach pipe, valves, pumps, and others for a secure, leak-proof system, is a flange. This endows the attached system with ease of access for inspection, cleaning, changes, or repairs while it has to endure assorted environmental conditions. The latest information suggests that flanges withstand a wide range of pressures, temperatures, and chemical exposures with the application of these flanges in areas such as oil and gas, power generation, water treatment, and chemical processing. One recent advancement is the development of pressure-reducing flanges and orifice flanges for specific applications to enhance the efficiency and performance of the system. This ability to evolve and align with technological needs surely anchors their continuing relevance amid modern industrial infrastructure.
Common Flange Types
|
Flange Type |
Key Feature |
Pressure |
Connection |
Usage |
|---|---|---|---|---|
|
Weld Neck |
Tapered Hub |
High |
Butt Weld |
High-pressure |
|
Slip-On |
Easy Install |
Low |
Fillet Weld |
Low-cost setups |
|
Socket Weld |
Compact Design |
Medium |
Fillet Weld |
Small pipes |
|
Lap Joint |
Rotatable |
Low |
Stub End |
Frequent access |
|
Threaded |
No Welding |
Low |
Threaded |
Small systems |
|
Blind |
Seals End |
High |
Bolted |
Testing/Closure |
Flange Dimensions
Flange sizes are standardized so as to be readily interoperable in a myriad of industries and applications. Standards such as ANSI/ASME B16.5, ISO, DIN, and API specify flange dimensions, including diameter, thickness, bolt circle, and bolt hole size. Essentially, such standards afford more exact specifications so that flanges become convenient to solder into juxtaposed systems. An ANSI/ASME-type flange may typically include, for instance, dimensions relating to nominal pipe size (NPS), pressure class, and bore diameter, all relevant to the design and procedural operation of the systems.
Flanges are selected with their dimensions in accordance with the pipeline or equipment they are to be fitted into. The flange’s outer diameter and thickness dictate the pressure that it can withstand, while bolt circle diameter and hole spacing are essential for a firm assembly. An absolute understanding of correct flange sizing is essential if adverse consequences to the structural integrity of the system are to be avoided under critical exposure.
Blind Flanges
Blind flanges find use for sealing the end of a pipeline or blocking off a connection to prevent fluid or gas flow. They are solid, round plates without a central bore, making them perfect for blocking a section of a system during maintenance or testing. A blind flange will provide a secure, leak-proof sealing solution, which is favorable for safety and operational efficiency in feasibility applications. They are mostly used in industries based on a choice of pressure, temperature, and material compatibility, including oil and gas, chemical processing, and water treatment.

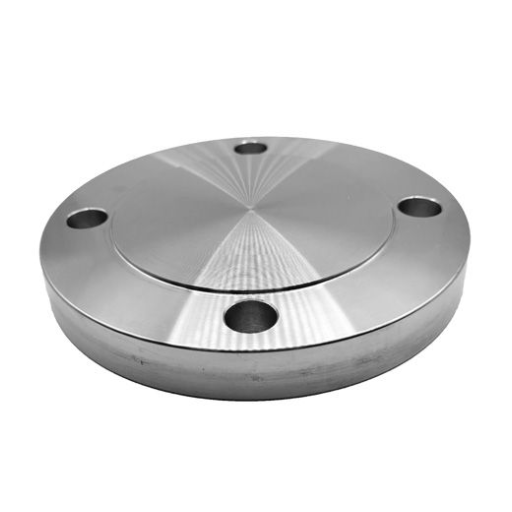

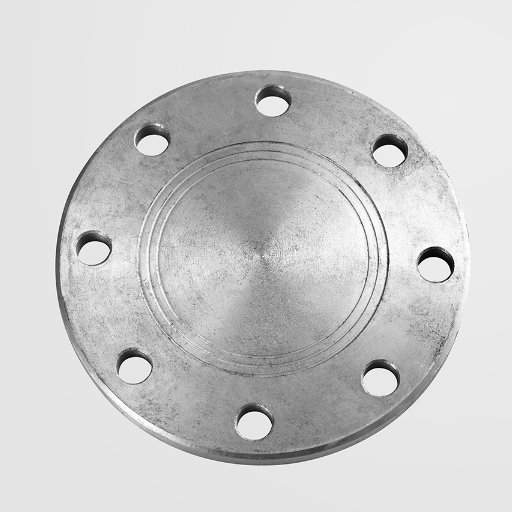

What is a Blind Flange?
A blind flange is used to seal off a pipe, valve, or vessel opening. This type of flange has no opening for fluids or gases to pass; hence, it is fundamental in isolating a section of a pipeline or system. This enhances safety during maintenance, repairs, or testing of the system by sealing the connecting point. For modern-day applications, blind flanges are valued for their strength and ability to withstand high-pressure levels and temperatures. Materials commonly used are carbon steel, stainless steel, or alloy steel depending on operational requirements.
These blind flanges conform to exacting specifications, being manufactured under standards such as ASME, ANSI, or ISO, providing cross-industry compatibility alongside the oil and gas, petrochemical, power plant, and water treatment industries. It gives the best sealing and prevents any kind of leakages that harm the system, hence enhancing operational efficiency. These might be integrated with raised faces or ring-type joint facings where a superior sealing performance is considered necessary.
Applications of Blind Flanges
Because of their functionality and reliability, blind flanges find application across several sectors. Mainly, pipelines use them to finish off or block the ends of pipes, valves, or pressure vessels. This is of utmost importance during regular maintenance, plant shutdowns, or when extending a pipeline network; it thus ensures sections of a system remain isolated for safety, and duly apprise any contamination or hazardous situations.
In oil and gas, blind flanges are vital in sealing high-pressure pipelines to operate under extreme conditions. The petrochemical industries use them extensively where corrosive or high-temperature substances are involved. Power plants use them in steam or water systems to enable controlled access and maintenance.
In water treatment, they allow testing and cleaning processes by securely interrupting flow; they could provide quite versatile sealing solutions. Can be custom-fitted for special requirements like various pressure ratings or material compositions, from carbon steel to corrosion-resistant stainless steel.
Increasing industrial demands have driven innovations to further improve the design of the blind flange in terms of safety, efficiency, and performance; thus, blind flanges have become indispensable in almost every operational environment.
Blind Flange vs Blank Flange
|
Parameter |
Blind Flange |
Blank Flange |
|---|---|---|
|
Purpose |
Permanent seal |
Temporary closure |
|
Design |
Solid, no openings |
Flat, no openings |
|
Material |
Steel, plastic, etc. |
Compatible materials |
|
Usage |
End of pipe |
Maintenance/testing |
|
Flow |
No flow allowed |
Flow possible |
|
Applications |
Termination |
Future connections |
Backing Flanges
Backing flanges differ from each other in reference to their functioning but they are connected with stub ends in industrial piping systems and are so named since they are installed to carry the loads. They are utilized for support and ensure the system is connected securely in systems that require frequent disassembly or adjustment. The backing flanges are made typically out of carbon steel or stainless steel and are meant to withstand diverse conditions in such environments and remain reliable for use. The principal function of backing flanges is to give a uniform distribution of pressure all around the joint so that there shall not be any risks of leakage or failure of the system. Backing flanges find wide usage in low-pressure applications and systems that need some sort of flexibility, making it a favorite in various industries such as Oil and Gas, Chemical Processing, and Water Treatment.

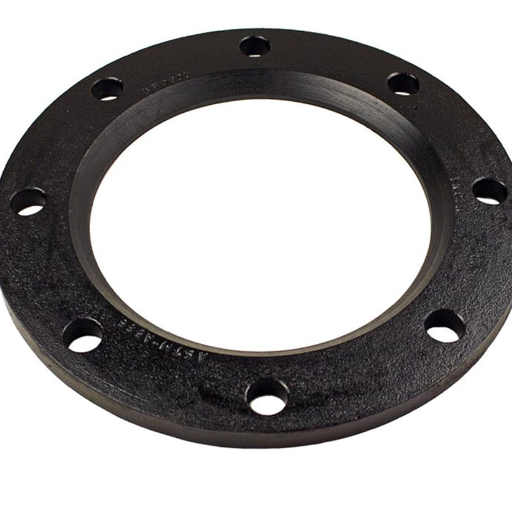

What is a Backing Flange?
Backing flange is a part within the pipe systems that gives support and stability. It is mainly meant to provide a secure and even distribution of pressure on the joint for the safety and efficient running of the system. Backing flanges are generally constructed of very durable materials like stainless steel or carbon steel and, thus, are highly resistant to corrosion and wear, making them more reliable as compared to others used in varying industries. These flanges are most commonly applied in piping systems working under relatively low pressure or systems requiring flexibility and efficiency in maintenance, such as in oil and gas, water treatment plants, or chemical processing plants.
Applications of Backing Flanges
Backing flanges serve very many purposes in industries that demand the viability and efficiency of piping systems. The oil and gas industry uses them extensively, allowing for easy assembly and disassembly of pipelines for maintenance and adjustment. In water treatment plants, backing flanges afford the required flexibility for handling complicated pipeline networks back. At their turn, chemical processing plants employ gooey substances that need backing flanges for safe and secure processing of corrosive materials. Endowed with flexibility and durability, they are considered necessary in any setting where reliability and adaptability are paramount.
Comparison to Other Flanges
The distinctive advantages of backing flanges become apparent when they are being compared with other flange types. Backing flanges sacrifice their strength to allow full flexibility in assembling and disassembling, whereas welded neck flanges are considered for extreme pressure applications, the joints of which are welded into the system and cannot be disassembled. Slip-on flanges, although much more simpler to install, do not offer backing flanges support and alignment. Threaded flanges may be suited for systems in which welding is to be kept to a minimum; however, these cannot even attempt to match the backing flange’s ability to cope with frequent adjustments or pipeline expansions. All in all, backing flange is said to be the most adaptable and convenient in a rather dynamic and maintenance-intensive application.
Materials Used in Flanges
Materials vary for flanges, depending on their use, pressure, and environmental conditions. Some of the commonly used materials are carbon steel, which is strong and cost-effective in general applications; stainless steel, which provides the best corrosion resistance, making it suitable for harsh environments with chemicals; and alloy steel, which is chosen for its durability and mechanical properties in extreme temperature and pressure situations. Non-metallic materials like PVC or polypropylene are used in low-pressure or lightweight systems, especially in industries handling corrosive substances or requiring non-metallic compatibility. The choice of material depends on operating temperature, pressure, and the type of media being transported.
Common Materials: Carbon Steel and Stainless Steel
In selecting between carbon steel and stainless steel, it’s essential to understand their properties and applications. Carbon steel is known for being cheap, strong, and durable, which makes it good for structural applications and anything in a high-stress situation. It, however, corrodes if left uncoated or untreated.
Stainless steel, in contrast, is corrosion-resistant because it contains chromium, which helps form a protective layer against moisture and chemicals-greater corrosion resistance than carbon steel. Thus, industries that require hygienic or weather-resistant components use stainless steel in applications such as food processing, healthcare, and marine industries. Even though stainless steel usually costs more, this higher upfront investment is often outweighed by reduced maintenance expenses and longer product lifetimes for certain applications.
Advantages of Carbon Steel Flanges
Carbon steel flanges combine strength, durability, and economy to suit a variety of purposes. Known for high tensile strength, the carbon steel flanges can resist heavy pressure and structural stresses, thus ensuring reliability in high-stress environments such as pipelines, refineries, and power plants. They are less expensive compared to other materials, such as stainless steel, which offers the most economical solution-landscaping. Another feature is that these flanges are easily customized, and they assure a variety of coatings to prevent corrosion for some operational conditions, thus extending their life and versatility.
Choosing the Right Material for Your Pipe System
I usually start by considering the requirements of the application when choosing the pipe materials. For a system that requires durability and cost-effectiveness, carbon steel flanges can be a good choice because they are strong yet relatively inexpensive and easy to modify. However, if the system is handling highly corrosive substances or operating at very high temperatures, stainless steel or some special alloys may be preferable. It’s important to even consider matching the material of the pipe to the fluid or gas to be transported to ensure their compatibility and prevent deterioration of either over time. I also consider industry standards, life expectancy, and maintenance requirements. Choosing a suitable material involves weighing the requirements against the cost to ensure that the system is not only reliable but also efficient.
Installation and Maintenance
Installation and maintenance in piping systems greatly influence performance and longevity. Following industry standards during installation is needed by way of psychosocial adherence to secure connections and proper alignment so that leaks and damages may be avoided. Maintenance activities include inspection for wear, corrosion, and blockages, and the immediate repair of problems observed to avoid failure. Cleaning is done when necessary, while replacement of any component near the end of its working life is done to maintain efficiency. This practice, therefore, greatly enhances the reliability of the system, which scales down the operational cost in the long run.
Welding Techniques for Flanges
Welded flanges need to be precise and in conformance with tall standards to create a good, long-lasting joint. In my opinion, and following several other trusted sources, one has to choose wisely with regard to welding processes. Regular practice includes using TIG welding processes that require application accuracy to get a clean weld or MIG welding, which works rapidly with thicker materials. Tilting flanges and pipe welds involve cleaning both to avoid contamination and align properly for sealing. Depending on the candidate materials, pre-heat treatment goes a long way in preventing cracking. Also, using the correct filler material and adhering to the specified heat inputs gives the welded joint the strength and durability needed by the application. Final inspection of the welds for defects such as porosity and cracks gives you an assuredly reliable system with good performance.
Gasket Selection and Installation
This entails ensuring the compatibility of the gasket with its working environment, including temperature and pressure exposure, as well as chemical compatibility. Then, I would measure the dimensions required for a proper fit and select a gasket meeting those requirements. During installation, it is necessary to check that the surface is clean and free of debris to facilitate proper sealing. Precise alignment of the gasket should be achieved, along with even torqueing of bolts in a crisscross pattern to prevent leaks by maintaining even pressure. Applying such a procedure will ensure maximum efficiency and lifespan for the sealing system.
Maintenance Tips for Flanges
When maintaining flanges, I begin with visual inspections to determine the existence of wear, corrosion, or damage. I am particular that all bolts are tightened to a specification because the unevenness may trigger leaking or flange distortion. Regular cleaning is the next course of action; cleaning should be done with appropriate tools to eliminate dirt, rust, or debris that can pose a threat to the seal. If the gasket needs replacement, I make an informed decision to select one that corresponds to the flange material and conditions of operation. Finally, I consider periodic evaluation of flange alignment and mating surfaces to ensure they are even and free of imperfections. Through continuous maintenance, the flange gains in performance and service life.
References
-
Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
This document provides detailed information on dimensional tolerances, shapes, and standards for various flange types.
Source -
Waveguide Flanges for ALMA Instrumentation
Discusses flat and anti-cocking flanges, including alignment tolerances and compatibility with MIL Spec flanges.
Source -
ASME B31.3 Process Piping Guide
Covers threaded fasteners used in flange joints and their structural shapes, including blind flanges.
Source
Frequently Asked Questions (FAQ)
What is the difference between blind flanges and flange covers?
Blind flanges and flange covers serve distinct purposes in piping systems. A blind flange is a solid component designed to close the end of a piping system, effectively sealing it off. In contrast, a flange cover is typically used to protect the flange face when the flange is not in use or during maintenance. While both serve sealing functions, blind flanges are permanently installed, whereas flange covers can be removed as needed. Blind flanges are commonly made from materials like carbon steel or stainless steel, making them suitable for high-pressure applications. In choosing between them, it’s essential to consider the specific use case and whether a permanent seal or temporary protection is required.
What are the different types of flanges used in piping systems?
There are several types of flanges used in piping systems, each designed for specific applications. Common flange types include slip-on flanges, weld neck flanges, threaded flanges, and lap joint flanges. Slip-on flanges are easy to install and can be fitted onto the pipe, while weld neck flanges are welded directly to the pipe for a stronger connection. Threaded flanges allow for easy assembly by being screwed onto the pipe, making them suitable for low-pressure applications. Lap joint flanges, on the other hand, are used with a lap joint stub and offer flexibility for alignment. Understanding the differences between these flange types is crucial for selecting the appropriate flange for your project.
How do blind flanges differ from blank flanges?
Blind flanges and blank flanges are often confused due to their similar appearances and functions. Blind flanges are solid discs that seal off the end of a piping system, preventing flow in and out. They are typically used in high-pressure applications where a secure seal is required. Blank flanges, however, are generally used as temporary closures during maintenance or construction. While blind flanges are designed for permanent use, blank flanges can be removed easily. Both types can be manufactured from various materials, including carbon steel and stainless steel, and are essential components in effective flange connections.
What is the purpose of a flange face in blind flange applications?
The flange face plays a crucial role in ensuring a proper seal when using blind flanges. The flange face is the surface where the blind flange meets the corresponding pipe or fitting, and it must be flat or raised, depending on the application. A well-prepared flange face allows for effective sealing with a gasket, which prevents leaks in the system. In high-pressure applications, the integrity of the flange face becomes even more critical. Selecting the appropriate flange face type ensures compatibility with the gasketing material, which can be vital for maintaining pressure and preventing failure in the piping system. Proper maintenance of the flange face is essential for long-term reliability.
What are the advantages of using lap joint flanges in piping systems?
Lap joint flanges offer several advantages in various piping systems, particularly in applications requiring flexibility and easy alignment. One key benefit is that they can be easily adjusted during installation, allowing for precise alignment with the stub end of the pipe. This adaptability makes lap joint flanges ideal for systems where the piping may need to be repositioned frequently. Additionally, lap joint flanges can be made from different materials, including carbon steel and stainless steel, making them versatile for numerous industrial applications. They are also easier to install compared to other flange types, as they do not require welding. This ease of use, combined with their ability to connect piping systems effectively, makes lap joint flanges a popular choice among engineers.
